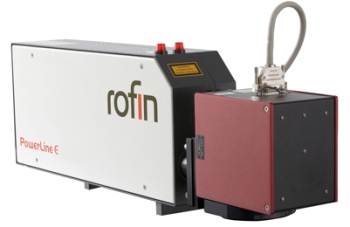

PowerLine E Series Laser Marking Systems from Rofin

Rofin的Powerline E系列包括适合各种应用的末端泵固态激光器。这些激光标记系统可提供称为Visual Lasermarker(VLM)的应用程序软件。该软件可以直接从计算机发送到激光标记的必要标记数据的布局,创建和传输。系统也很容易集成和维护。

Depending on application requirements, the lasers are available as water-air-cooled and air-cooled in different wavelengths and a variety of power ranges.

ROFIN还为太阳能行业(Powerline E PV),安全文档(Powerline E PC)和Semicon应用程序(Powerline E IC)提供了产品线的特定模型。

Key Features

The main features of the PowerLine E series are:

  • 紧凑的设计可确保简单集成
  • Several wavelengths
  • Different power ranges
  • Single and double galvo configuration
  • 激光类型:二极管末端泵ND:YVO4
  • Wavelength: 1064nm, 532nm, 355nm
  • 输出功率类最多:10-40W
  • 标记字段:120 x 120(请要求其他维度)
  • Pulse frequency: 1-200kHz, and CW
  • 功耗:0.5-1.88kw。
