TMC气动隔振系统非常适用于刀具设计人员，希望超精密仪器的出色隔振。TMC现在提供公司的行业标准MaxDamp®, Gimbal Piston™, and UltraDamp™ isolators in a convenient range of damping levels, capacities, and leveling versions to match numerous applications.
The systems are ideal for OEM applications. These isolators are offered in a modular, interchangeable, and upgradable design. To ensure customers specify a version that will meet their settling time and isolation needs, TMC engineers can model customer’s configuration with their "Moving Stage Application Model."
TMC优势
- Built specifically for OEM applications
- 即使在安静的环境中，也提供了高水平的振动衰减
- 支持从90公斤到8,200公斤（200至18,000磅）的有效载荷
- Multiple versions of height control
- Multiple levels of damping to choose from
- Isolator designs are interchangeable. Easily facilitates changes of requirements without expensive tool redesign
Features

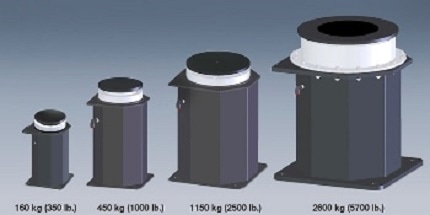

Four capacities:
- 160公斤（350磅）@ 5.50 kPa（80 psi）
- 450千克（1000磅）@ 5.50 KPA（80 PSI）
- 1150公斤（2500磅）@ 5.50 KPA（80 psi）
- 2600 kg (5700 lb.) @ 5.50 kPa (80 PSI)
Three damping levels:
- Gimbal Piston™ for maximum vibration attenuation
- Ultradamp™用于最大限度地阻尼共振
- maxdamp.®for high damping of resonance
三个平整选项：
- Standard height control (+/- 2.5 mm, +/- 0.1”)
- PEPS®二非接触式精密电子定位System (+/- 0.0025 mm, +/- 0.0001”)
- Precision height control Valves (+/- 0.25 mm, +/- 0.01”)
表现

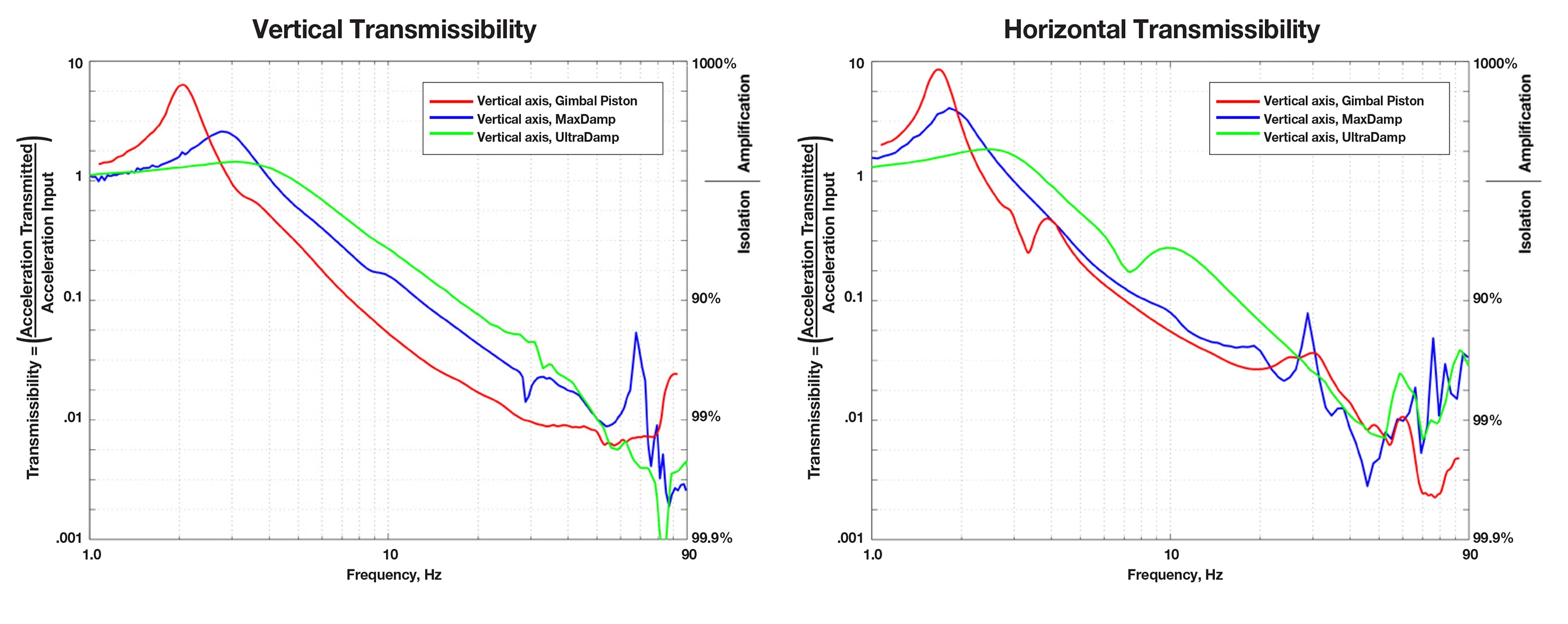

Three damping levels. Select maximum vibration attenuation or aggressive damping for applications with robotic motion or moving stages.
Choose between three damping levels
