XBC1000-25：落地式箱压缩机

需要更多信息？

Let us help you with your inquiries, brochures and pricing requirements

请求报价
Download PDF Copy

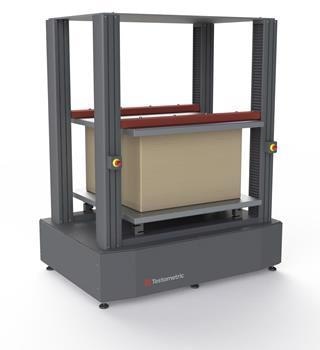

Testometric推出了一个名为XBC1000-25的地板常设盒压缩机，该机与精密交流伺服驱动系统一体化和完整的计算机控制。该机器具有刚性的4柱式负载框架，下板配有四个平衡负载电池，以更好的精度和耐受性负载。

表格1。资料来源：Testometric Company Ltd

	XBC1000-25
力容kn.	25
准确性	优于+/- 0.5％的阅读 to 1/1000^thof load cell capacity
Platen size mm	1000 x 1000
最大压板开口mm *	1050
位置控制分辨率mm	0.000001.
Distance between columns mm	1090.
Minimum Speed mm/min	0.00001
最大速度mm / min	1000
速度准确性	+/- 0.1% under stable conditions
Max force at full speed kN	25
Max speed at full load mm/min	1000
Data Acquisition Rate (at PC)	500 Hz as standard (optional 1000 Hz)
PC Connection	以太网（或USB通过适配器）
Machine Configuration	Four column configuration, floor standing
Weight kg	620
工作温度°C	-10到+40
Operating Humidity	+10 to +90% non-condensing
Electrical Supply	双输入可选115或230 V，1 pH 50/60 Hz
Power KW.	1

*可应要求提供扩展旅行版本。

衡量

盒式压缩机是一种完全数字测试系统，精度高精度控制和精度。它使得自动化计算机控制测试技术以提供易操作性。

High resolution load cells with precisions better than +/−0.5% down to 1/1000^thof the capacity of load cells
软件calibration check facility allows immediate verification of machine precision
Load cells and extensometers are automatically recognized and calibration parameters can be stored in the device
通过无刷伺服电机和数字交流伺服驱动器进行精密十字头控制，并提供23位位置控制和免维护操作
Has an 800% overload capability of load cells without any kind of damage
高速数据收集系统提供多达四个同步通道
High efficiency, pre-loaded, self-cleaning ballscrews allow quick and quiet testing; fitted with sealed-for-life lubricated end bearings
过度旅行，过载和冲击保护
伸缩式封面为灰尘和测试碎片提供额外的滚珠丝杠
十字头引导系统确保平滑运行并允许准确对齐
High stiffness loading frames with precision ground steel guide rods as well as rigid extruded support columns equipped with T-slots are available for accessory mounting
额外的设备包括六个I / O通道，如微米，突出仪，卡钳，平衡等。

（1）以额外的成本提供。或者，可以使用标准PC或笔记本电脑（未提供）控制机器。

(1) Availableat additional cost. Machine can alternatively be controlled using a standard PC or laptop (not supplied). Image Credit: Testometric Company Ltd

XBC Dimensions

XBC1000-25：落地式箱压缩机

图像信用：Testometric Company Ltd

表2。资料来源：Testometric Company Ltd

	XBC1000-25
总体宽度'A'（不包括触摸屏）	1455
深度'B'	1010
Overall Height ‘C’	1780.
Distance between columns ‘D’	1090.
压板宽/深度'e'	1000
最大压板打开'f'	1050

Notes:All dimensions in millimeters. Dimensions are based on standard models, and extended/wide frame versions are available on request.

大量的夹具和固定装置可用。

大量的夹具和固定装置可用。图像信用：Testometric Company Ltd

High-speed modular electronics.

高速模块化电子。图像信用：Testometric Company Ltd

Accessories according to ISO, ASTM, and TAPPI standards.

配件根据ISO，ASTM和TAPPI标准。图像信用：Testometric Company Ltd

Built for Precision

力量测量

Better than Grade 0.5 EN 7500-1specifications; universally calibrated; conforms to DIN 51221 ASTM E-4 and AFNOR A03-501 standards; offers a minimum range of 0.4% to 100%, automatically identifies load cells; protects electronic load cells; and provides a resolution of 1 part in 500,000.

Extension Measurement

提供全帧长度，以最高分辨率为0.000001 mm（可选）;提供+/- 0.01 mm的精度，包括百分比，毫米和英寸的相对，绝对和辅助模式。

Speed Control

该系统以低至0.00001毫米/分钟的速度提供一流的低速性能，并防止驱动系统温度和电流。

加载框架

This is a rigid four column load frame that comes with precision crosshead guidance. Frame stiffness is up to 150 kN/mm, along with a built-in K factor facility. There are also other features, like re-circulating ballscrew with bellows, electronic limit trips, total travel trips and customer programmable safety stops.

电子系统

模块化电子系统允许通过高速以太网连接快速传输到计算机（最多1000 Hz）的数据。宽输入选项可帮助通过轻松插入接口模块连接大量附件和扩展器。

Safety Features

Comprehensive safety features, such as E-Stop, overload/impact detection and programmable extension limits, guarantee the highest levels of operator safety. Fully complies with universal safety directives—2006/42/EU Machinery Directive, 2014/30/EU Electromagnetic Compatibility Directive and 2014/35/EU Low Voltage Directive.

Optional Touchscreen Panel PC

While combined with the optional IPC3 industrial grade Panel PC with touchscreen control, the machine turns into a powerful, standalone system without the necessity for a laptop or external computer.

使用最新的Windows 10操作系统并运行完整版本的Testomical的Wintest软件包，系统可以完全控制测试机器，并允许存储和访问不受限制的测试技术和结果。

The built-in mounting arm, fixed to the machine column T-Slots, is completely adjustable for reach, height and viewing angle enabling users to determine the most ergonomic working position.

XBC1000-25：落地式箱压缩机

图像信用：Testometric Company Ltd

规格

CPU-I5-4300M英特尔核心I5处理器，2.6 GHz
Display 15.6″ 1366 x 768-panel resistive touch screen with dirt repellent, anti-reflective screen protection
QM87 Chipset, 4 x USB3.0 and 3 x COM ports [RS232], 2 x GigaLAN
4 GB, 1600 MHz SODIMM DDR3 204-pin
2.5″ 250 GB, Solid State Disk (SSD) and SATA III 6 GB/second

Tried and Tested Software

每个测试模型都以广泛的Wintest Analysis软件包提供。

Wintest Analysis软件是一款多年的持续开发产品，提供直观和灵活的软件包，以满足各种材料测试。内置试验方法覆盖拉伸，压缩，弯曲，剥离，剪切，循环，撕裂，蠕变和多级测试。

该软件包含广泛的行业标准测试方法和制作和存储不受限制的额外测试方法的能力。有关Excel，Word，Access和SPC系统等其他软件包的所有测试数据和导出的舒适性，可用于改进的报告生成。

By adding the RCE remote connection option, all machines can be directly web-linked to Testometric for remote analysis, monitoring and software upgrades.

屏幕实时测试。
